StormByte::Buffer::Telemetry Class Reference

Buffer session counters layered on Base's named clocks. More...

#include <StormByte/buffer/telemetry.hxx>

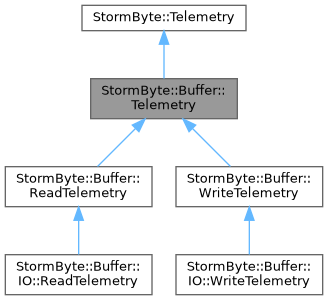

Inheritance diagram for StormByte::Buffer::Telemetry:

Collaboration diagram for StormByte::Buffer::Telemetry:

Classes
class	OperationSample
	Measures one operation with a Base named clock. More...

Public Member Functions
virtual	~Telemetry () noexcept
	Virtual destructor.
StormByte::ByteSize	MeanRate () const noexcept
	Effective mean rate of requested user operations.
OperationSample	MeasureOperation ()
	Starts measuring an operation with Base's named clock drawer.
virtual	operator StormByte::Safe::String () const =0
	Flatten counters.
STORMBYTE_FORCE_INLINE	operator std::string () const
	Flatten via StormByte::Safe::String in this TU.
Public Member Functions inherited from StormByte::Telemetry
virtual	operator Safe::String () const=0
STORMBYTE_FORCE_INLINE	operator std::string () const

Protected Member Functions
	Telemetry () noexcept
	Construct all counters at 0.
	Telemetry (const Telemetry &)=delete
	Telemetry (Telemetry &&)=delete
Telemetry &	operator= (const Telemetry &)=delete
Telemetry &	operator= (Telemetry &&)=delete
void	RecordOperation (StormByte::ByteSize bytes, std::chrono::microseconds elapsed) noexcept
	Accumulate the committed bytes and duration from a Base clock.
Protected Member Functions inherited from StormByte::Telemetry
	Telemetry () noexcept
	Telemetry (const Telemetry &)=delete
	Telemetry (Telemetry &&other) noexcept
Telemetry &	operator= (const Telemetry &)=delete
Telemetry &	operator= (Telemetry &&other) noexcept
class Clock &	Clock (std::string_view name) noexcept
const class Clock &	Clock (std::string_view name) const noexcept

Friends
class	Bridge

Detailed Description

Buffer session counters layered on Base's named clocks.

MeanRate

Octets per second of requested user operations, not of the device. A cache Write can look like GiB/s; that is the caller rate, not a disk benchmark. Worker, GC and backpressure enter only when they delay that call. Explicit Flush / Close Flush pull the rate back when the origin works.

Not wall time from Open. 0 until an operation has a non-zero duration. Flatten prints StormByte::ByteSize IEC text plus "/s".

Rate accumulators are atomic. Each concurrent thread/depth receives a distinct Base clock so the clock's Start/Stop pair is not shared.

Constructor & Destructor Documentation

~Telemetry()

virtual StormByte::Buffer::Telemetry::~Telemetry ( )

virtualnoexcept

Virtual destructor.

Out-of-line for the DLL boundary.

Reimplemented from StormByte::Telemetry.

Telemetry() [1/3]

StormByte::Buffer::Telemetry::Telemetry ( )

protectednoexcept

Construct all counters at 0.

Telemetry() [2/3]

StormByte::Buffer::Telemetry::Telemetry ( const Telemetry &  )

protecteddelete

Telemetry() [3/3]

StormByte::Buffer::Telemetry::Telemetry ( Telemetry &&  )

protecteddelete

Member Function Documentation

MeanRate()

StormByte::ByteSize StormByte::Buffer::Telemetry::MeanRate ( ) const

noexcept

Effective mean rate of requested user operations.

Returns

Octets per second. 0 if no timed operation yet.

Not origin throughput.

MeasureOperation()

OperationSample StormByte::Buffer::Telemetry::MeasureOperation

(

)

Starts measuring an operation with Base's named clock drawer.

Returns

A scope sample. Call Commit only when the operation counts.

operator std::string()

STORMBYTE_FORCE_INLINE StormByte::Buffer::Telemetry::operator std::string ( ) const

inline

Flatten via StormByte::Safe::String in this TU.

Returns

std::string on the caller heap.

operator StormByte::Safe::String()

virtual StormByte::Buffer::Telemetry::operator StormByte::Safe::String ( ) const

pure virtual

Flatten counters.

Safe across the DLL boundary.

Returns

Owned StormByte::Safe::String.

Implemented in StormByte::Buffer::IO::ReadTelemetry, StormByte::Buffer::IO::WriteTelemetry, StormByte::Buffer::ReadTelemetry, and StormByte::Buffer::WriteTelemetry.

operator=() [1/2]

Telemetry & StormByte::Buffer::Telemetry::operator= ( const Telemetry &  )

protecteddelete

operator=() [2/2]

Telemetry & StormByte::Buffer::Telemetry::operator= ( Telemetry &&  )

protecteddelete

RecordOperation()

void StormByte::Buffer::Telemetry::RecordOperation ( StormByte::ByteSize  bytes, std::chrono::microseconds  elapsed  )

protectednoexcept

Accumulate the committed bytes and duration from a Base clock.

Parameters

bytes	Octets this operation delivered or accepted.
elapsed	Duration recorded by its named Base clock.

Friends And Related Symbol Documentation

Bridge

friend class Bridge

friend

---

The documentation for this class was generated from the following file:

• lib/public/StormByte/buffer/telemetry.hxx
